Paladin Brush Mower HYEX 12,000 LBS - 28,000 LBS | 40" Cutting Width | For Excavator
DESCRIPTION
The Paladin MX Series Brush Mower is designed for efficient brush and vegetation management, compatible with 3- to 8-ton excavators, including models from Bobcat, Caterpillar, John Deere, and more. This heavy-duty attachment, built with a solid T-1 steel deck and reversible AR400 cutting blades, can tackle brush and trees up to 4 inches in diameter with ease. Available with exchange and wedge mounts, the MX series supports multiple coupling systems, allowing quick reconfiguration in the field. This versatility makes it ideal for clearing embankments, ditches, and right-of-way areas, ensuring precision and control in various environmental conditions.
With its direct-drive hydraulic motor, durable bearing housing, and a no-case-drain design, the Paladin MX Brush Mower offers reliable performance across diverse applications. The automatic hydraulic braking system stops blade rotation in 10-15 seconds, providing fast, safe operation. It features a hinged debris shield and curtain shielding to manage debris projection, optimizing safety and control while minimizing maintenance.
Key Features
- 4" Cutting Capacity: Handles dense vegetation and small trees
- Direct-Drive Motor: Ensures longevity and smooth operation without case drain

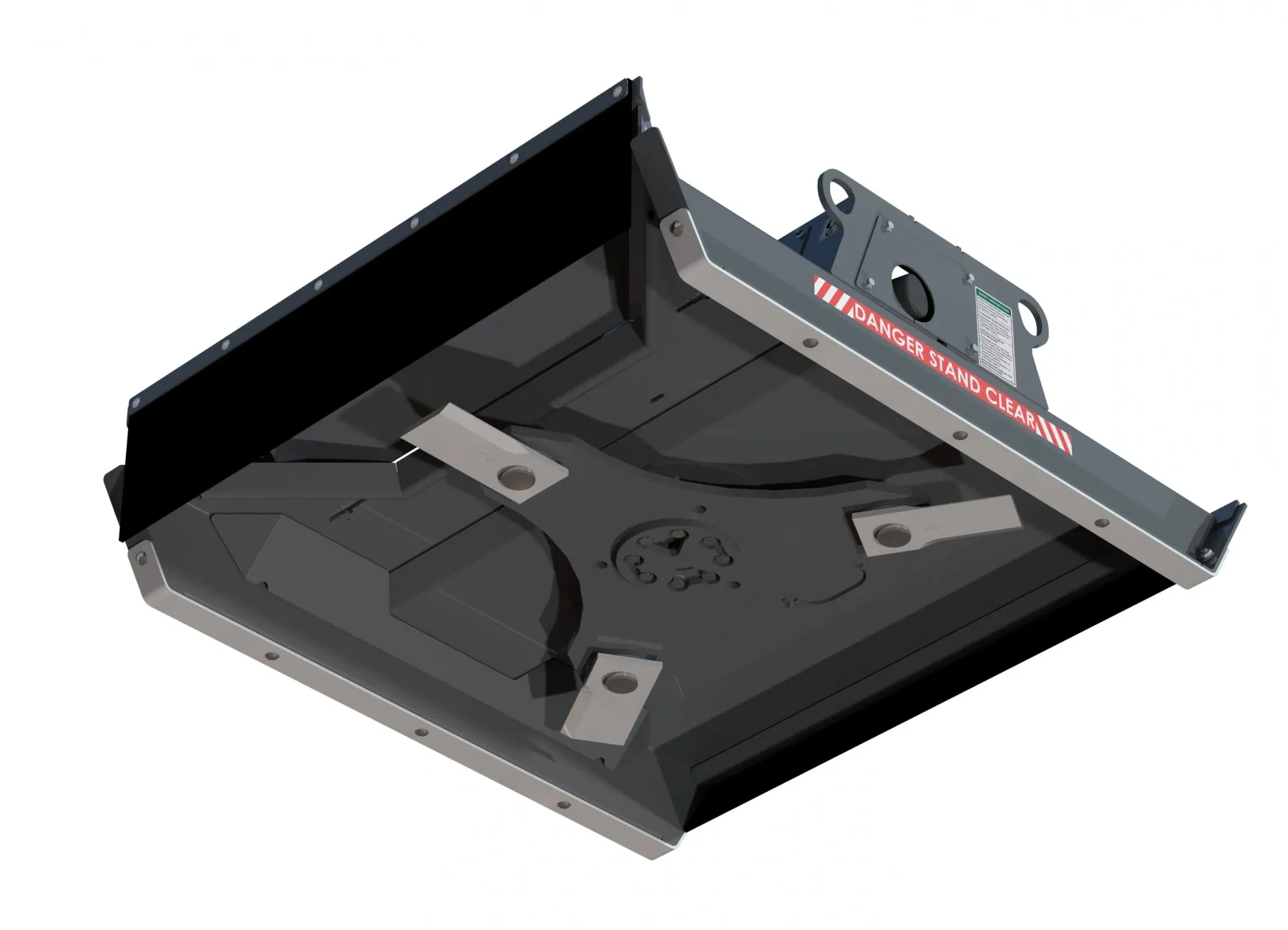

- Reversible AR400 Blades: Provides efficient cutting with extended blade life
- Hinged Debris Shield: Enhances safety and allows for aggressive cutting
- Automatic Hydraulic Braking: Stops blades quickly, improving operator safety

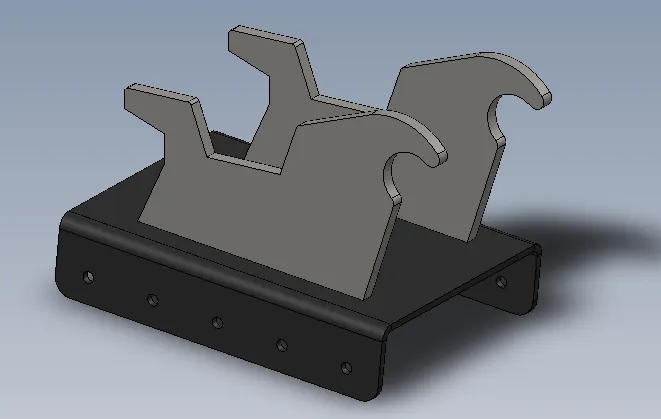

- Interchangeable Mounting System: Adapts to different mounts, simplifying setup
- Fore & Aft Curtain Shielding: Controls debris spread, ideal for populated areas
- Solid T-1 Steel Deck: Built to withstand rugged conditions and heavy use
- No Case Drain Needed: Maximizes compatibility across various machines
- Lightweight Design: Weighs 660 lbs, easy for mini excavators to handle
Detailed Specifications
40" Model Specifications (19GPM-26GPM and 13GPM-19GPM)
| Attribute | 40" Model 19GPM-26GPM |
|---|---|
| Part Number | 125140B/D000040 |
| Manufacturer | Paladin |
| Category | Excavator Attachments |
| Subcategory | Brush Mower for Excavator |
| Industry | Construction, Landscaping |
| Machine Size | 12,000-28,000LBS, 19GPM-26GPM |
| Attachment Size | 40" Cutting Width |
| Cutting Capacity | 4" Diameter |
| Deck Material | T-1 Steel |
| Blade Type | Reversible AR400 |
| Debris Shield | Hinged with Curtain Shielding |
| Attribute | 40" Model 13GPM-19GPM |
|---|---|
| Part Number | 125140A/D000040 |
| Manufacturer | Paladin |
| Category | Excavator Attachments |
| Subcategory | Brush Mower for Excavator |
| Industry | Construction, Landscaping |
| Machine Size | 12,000-28,000LBS, 13GPM-19GPM |
| Attachment Size | 40" Cutting Width |
| Cutting Capacity | 4" Diameter |
| Deck Material | T-1 Steel |
| Blade Type | Reversible AR400 |
| Debris Shield | Hinged with Curtain Shielding |
40" Model John Deere Wedge Mount
| Attribute | 40" Model John Deere Wedge Mount |
|---|---|
| Part Number | 125140A/13-20564/28-11139/28-11091-E0228 |
| Manufacturer | Paladin |
| Category | Excavator Attachments |
| Subcategory | Brush Mower for Excavator |
| Industry | Construction, Landscaping |
| Machine Size | John Deere 35G and 50G Wedge Mount |
| Attachment Size | 40" Cutting Width |
| Cutting Capacity | 4" Diameter |
| Deck Material | T-1 Steel |
| Blade Type | Reversible AR400 |
| Debris Shield | Hinged with Curtain Shielding |
In Package
- 1 Paladin MX Series Brush Mower (selected model and mount)
- Mounting hardware (mount specified at purchase)
- Installation and user manual
Available Options
- Mount Type: Wedge and exchange mounts available
- Flow Rate Compatibility: Models for 13GPM-19GPM and 19GPM-26GPM
Benefits
- Quick Setup: Interchangeable mounts for compatibility with various excavators
- Heavy-Duty Construction: Designed to handle demanding brush management tasks
- Enhanced Safety: Hydraulic braking for controlled blade stops
- Debris Control: Curtain and hinged shield reduce debris spread
- Cost-Effective Solution: Adds versatility to standard excavator operations
